$552.00
QTY:
EMPTY
PEDESTALS SOLD SEPARATELY

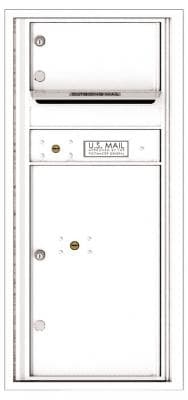

versatile™ 4C Mailbox – ADA Max Height – 1 Tenant Mailboxes
Product Number: 4CADS-01
PEDESTALS SOLD SEPARATELY
Before You Buy:
- USPS Approved for wall-mounted applications only
- It is strongly recommended that you consult with local Postal Officials prior to ordering
- Also available for Private Mail Delivery (non-USPS)
- Designed to be recess mounted into a wall
- For Surface Mounting on a wall an additional Surface Mount Collar is required – See below for the link to the appropriate Collar for this product!
Dimensions:
Height
37.25"
Width
17.50"
Depth
17.00"
Weight
50lbs
Additional Resources:
- Versatile™ 4C Mailbox Color Chart
- Recess Mounted 4C Mailbox Installation Manual
- Versatile™ 4C Mailbox Drawing 4CADS-01
- 4C Mailbox Brochure 2021
| Weight | 50 lbs |
| Single high tenant doors | 1 |
| Parcel lockers | 1 |
| Outgoing compartments | 1 |
| Rough opening size | |
| Height | 36.3125" |
| Width | 16.25" |
| Depth | 17" |
| Actual Unit Size | |
| Height | 37.35" |
| Width | 17.5" |
| Depth | 17" |
ADA Max Height versatile™ USPS Approved 4C Mailbox One-Tenant Mailbox
This one-tenant model 4C versatile™ mailbox from US Mail Supply is ADA compliant, ensuring your building stays up to code.
When properly mounted, the ADA compliant 4C mailbox has its tenant locker and parcel locker within the high (48” AFF) and low (15” AFF) reach limits.
ADA compliant one-tenant 4C horizontal mailboxes feature one oversized (6.5” high) tenant door, one oversized (20.5” high) parcel locker, and one outgoing mail slot.
This 4C locking pre-USPS approved mailbox is available in front loading style only.
Product features:
- This mailbox is USPS Approved!

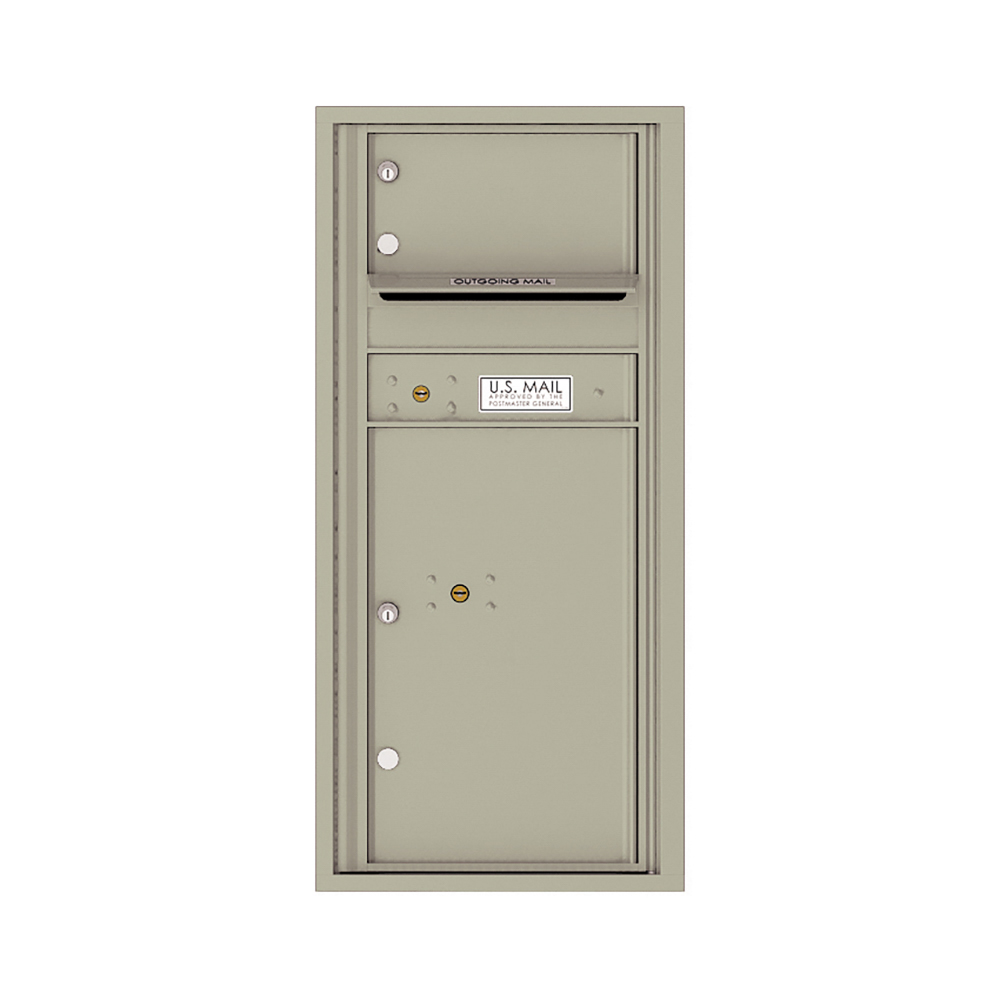

- Several powdercoat finishes to choose from: Antique Bronze, Black, Dark Bronze, Gold Speck, Postal Gray, Sandstone, Silver Speck, or White. Postal Gray is shown above.
- STANDARD CONFIGURATION DETAILS:
- Number of double high tenant doors (6 1/2"H): 1
- Number of parcel lockers: 1 (20 1/2"H)
- Number of outgoing compartments (6 1/2"H): 1
- View the complete dimensions of the one tenant horizontal wall-mounted 4C mailbox.
- Custom configurations of this module are also available - Call us for assistance
- Available in front-loading only (mail carrier accesses from the front)
- Choose from USPS mail delivery or private mail delivery ($30 upcharge per module for private delivery – includes a commercial master lock with 2 keys each - All Private Use Master Locks are keyed alike)
- This unit is for recess mount applications only (17" of wall depth required). Surface mounting requires the purchase of the surface mount collar – see product #SM10S
Choose From Eight Finishes
The ADA compliant one-tenant 4C versatile™ mailbox is available in eight vandal resistant powder coat finishes:

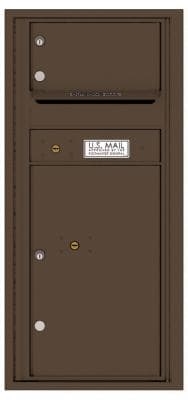

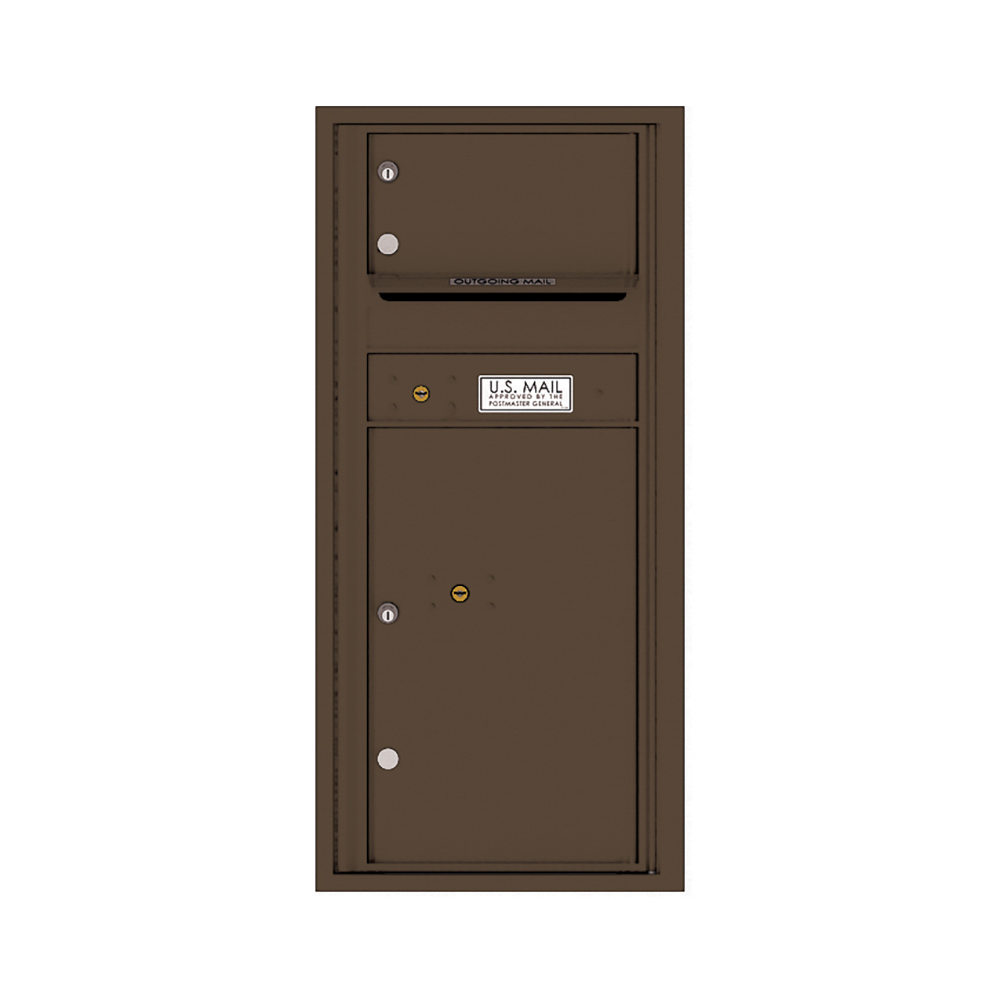

- Antique Bronze

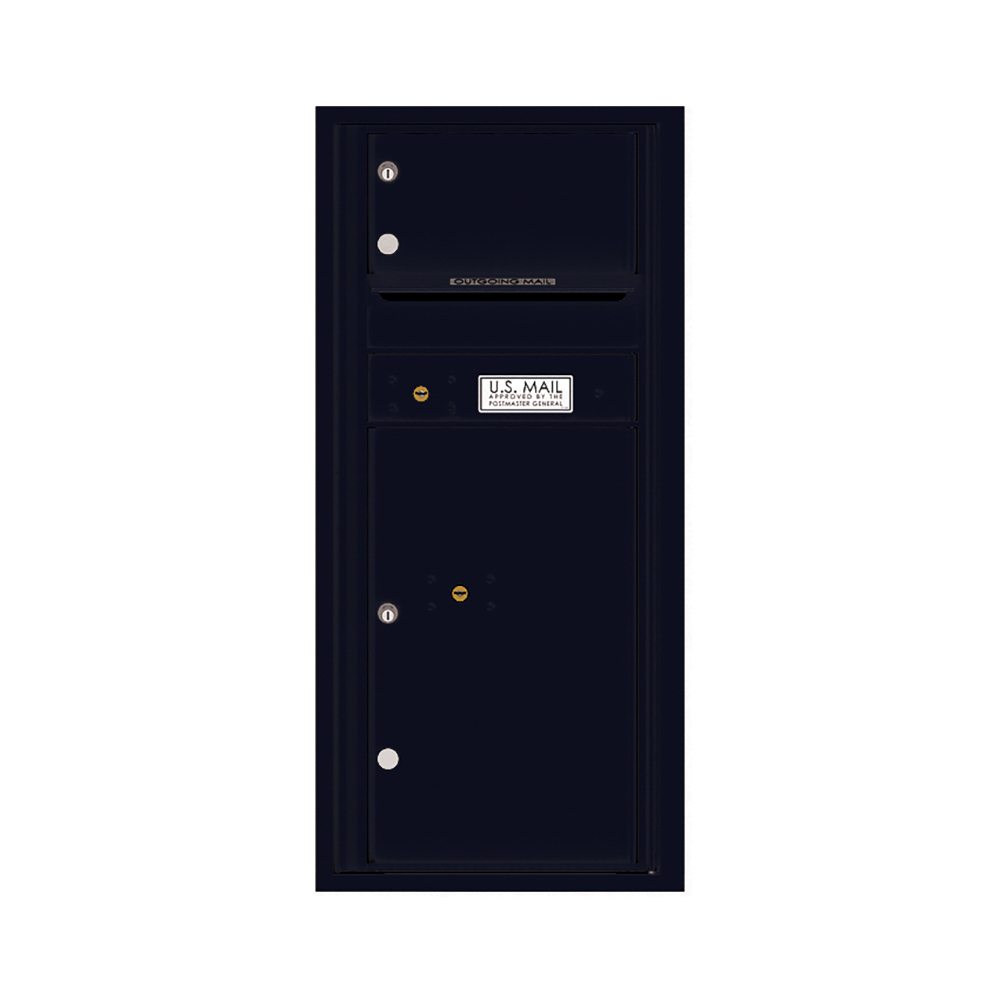

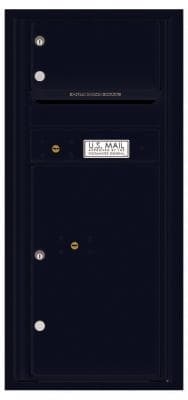

- Black

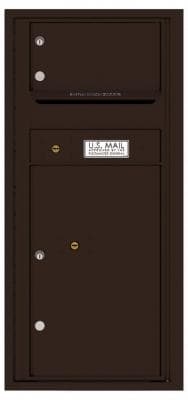

- Dark Bronze
- Gold Speck (shown above)
- Postal Grey

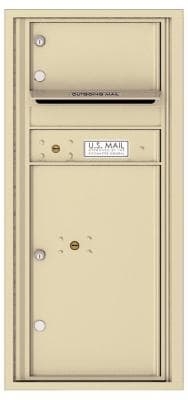

- Sandstone

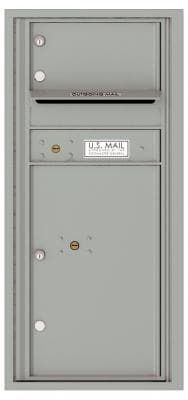

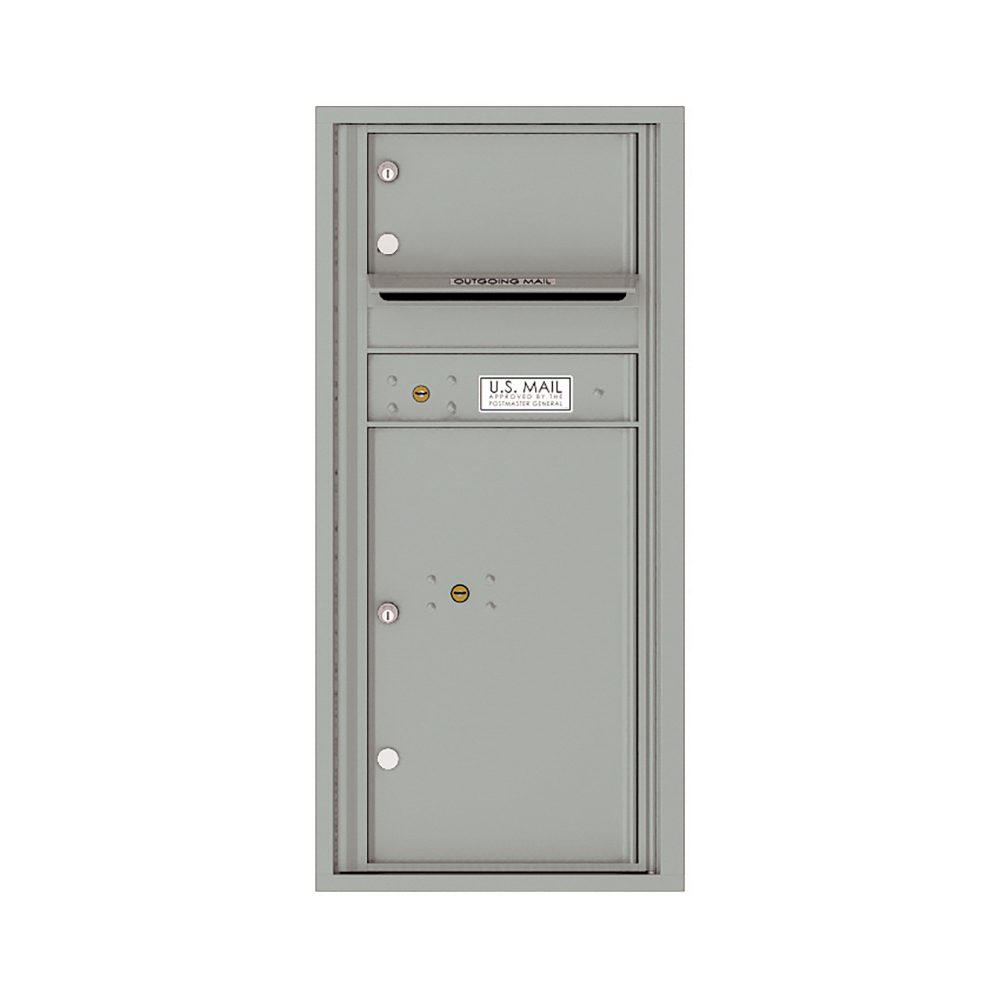

- Silver Speck

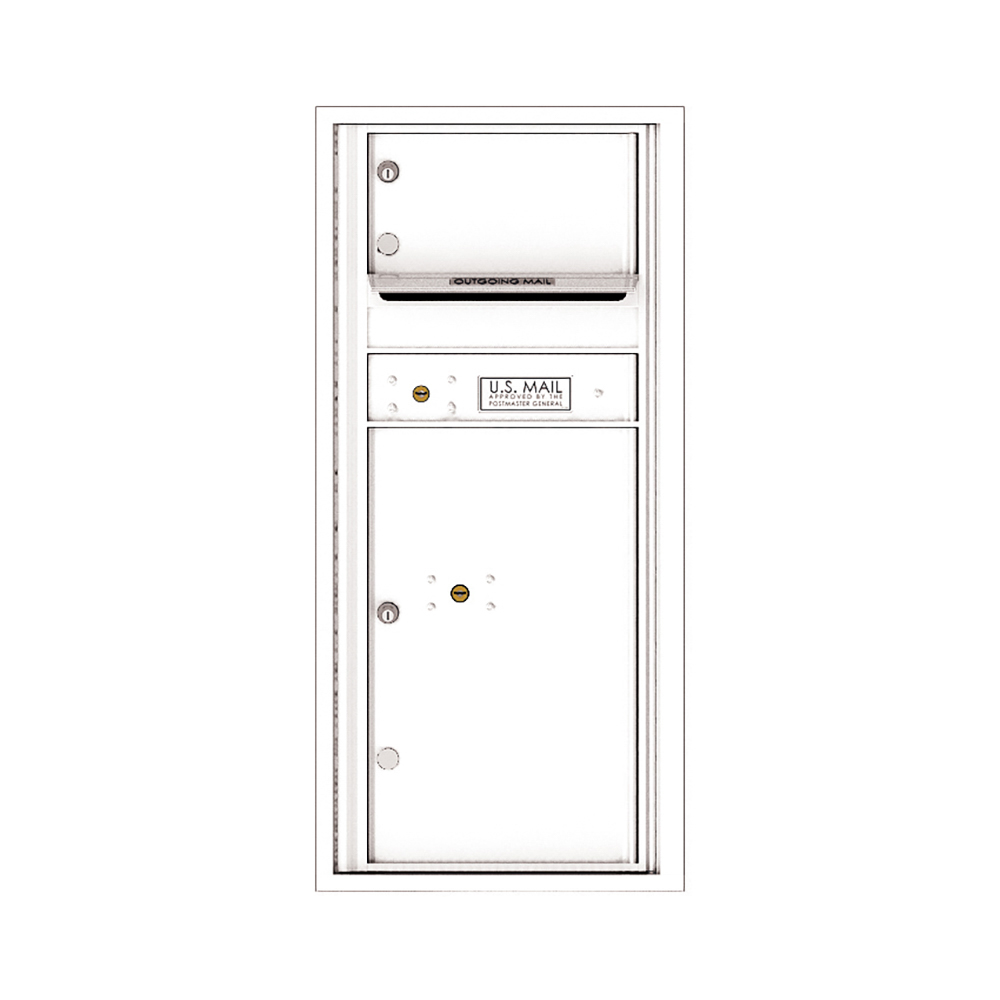

- White
